Interconnection motherboard making possible connection of 25 Timepix detectors to one FITPix readout interface.

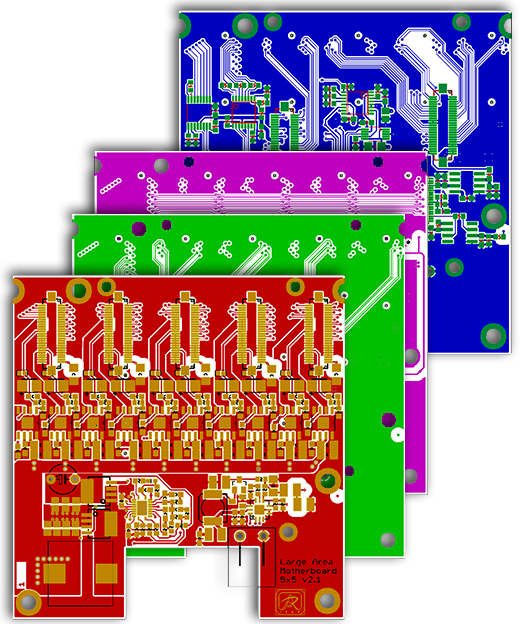

PCB schematic / PCB layout design / hand soldering

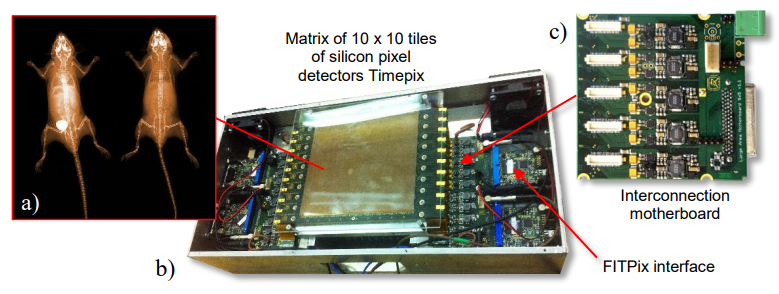

Interconnection motherboard making possible connection of 25 Timepix detectors (five rows with five detectors each) to one FITPix readout interface. The motherboard was designed for the new large area device composed of a matrix of 10 x 10 tiles of silicon pixel detectors Timepix having fully sensitive area of 14.3 x 14.3 cm2.

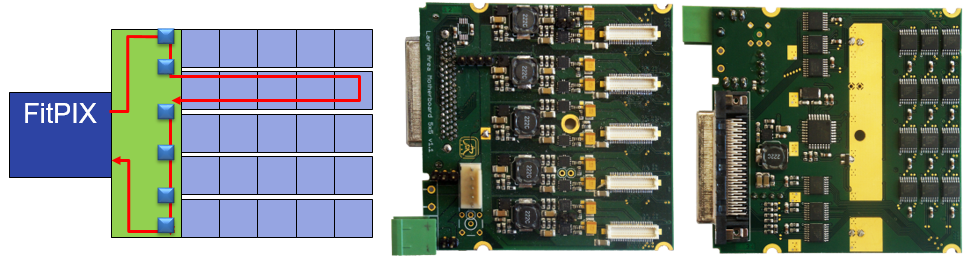

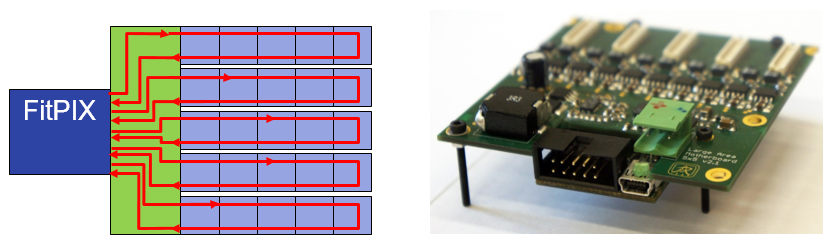

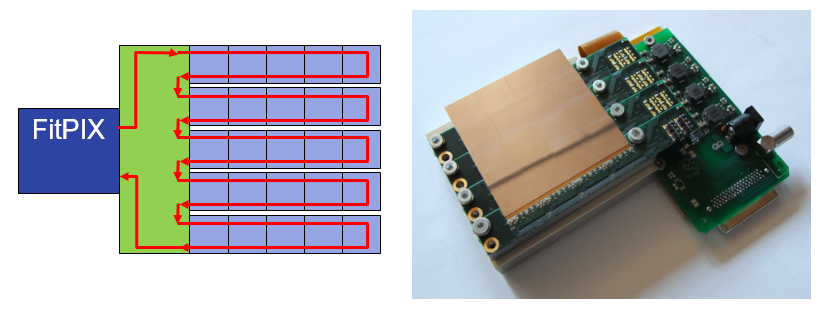

Gradually developed three different versions.
PCB design: Eagle
DS90CP22 800 Mbps 2x2 LVDS Crosspoint Switch
Microcontroller: AVR ATMega
Power sources: NCP1599, TPS74801
Large area pixel detector WIDEPIX with full area sensitivity composed of 100 Timepix assemblies with edgeless sensors
J. Jakůbek, M. Jakůbek, M. Platkevič, P. Soukup, D. Tureček, V. Sýkora, D. Vavřík
JINST 9 C04018 (2014)
