Verze
FT230X USB to serial UART interface
- jednoduchy maly 16-ti pinovy svabik pro prevod USB na UART
- idealni pokud potrebuju udelat z usbcka seriak a nic vic
- EEPROM integrated
- FT230XQ = 16 Pin QFN
- FT230XS = 16 Pin SSOP
– pouzito v LED calibration device

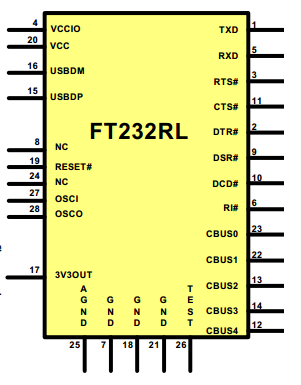

FT232R USB to serial UART interface
- taky pro prevod USB na seriak, ale uz toho umi trosku vic
- optional clock generator output
- FTDIChip-ID™ security dongle feature
- asynchronous and synchronous bit bang interface modes available
- EEPROM integrated
- FT232RQ = 32 Pin QFN
- FT232RL = 28 Pin SSOP
– pouzito v RTG control
FT232B – predchudce FT232R (zastarale)

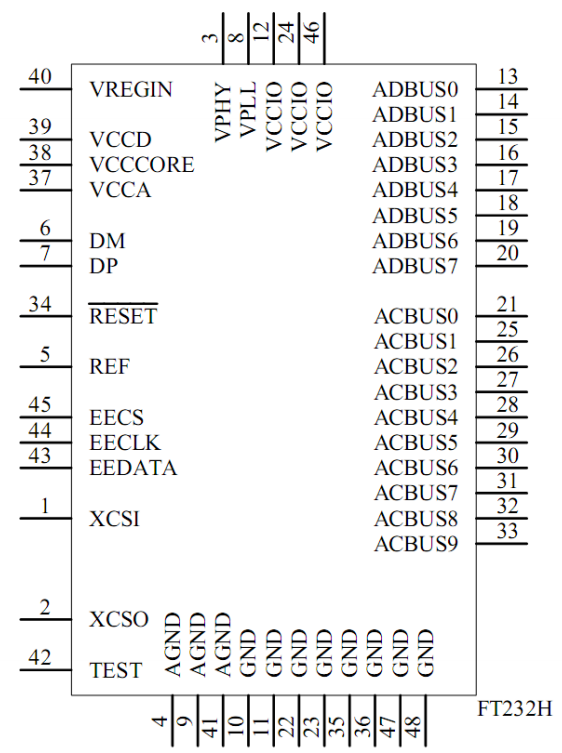

FT232H
- Hi-Speed Single Channel USB UART/FIFO IC
- potrebuje externi EEPROM (93LC56B), nefunguje s 93LC46B!!!
- pouzito v Risesatu
Ovladace:
VCP … virtualni seriovy port (Virtual COM Port)
D2XX … prime ovladace, poskytuji dalsi funkce
