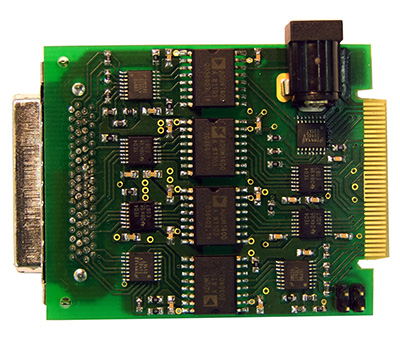

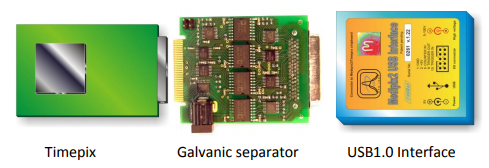

Galvanic separation module between Timepix detector and USB interface for suppression of the electromagnetic noise – based on ADuM1400 digital isolators.

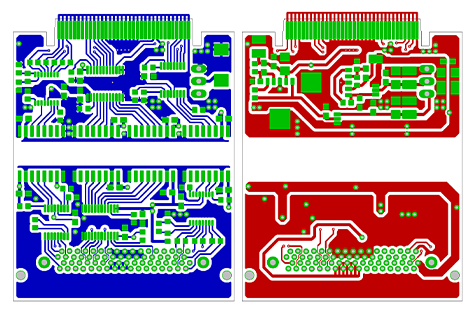

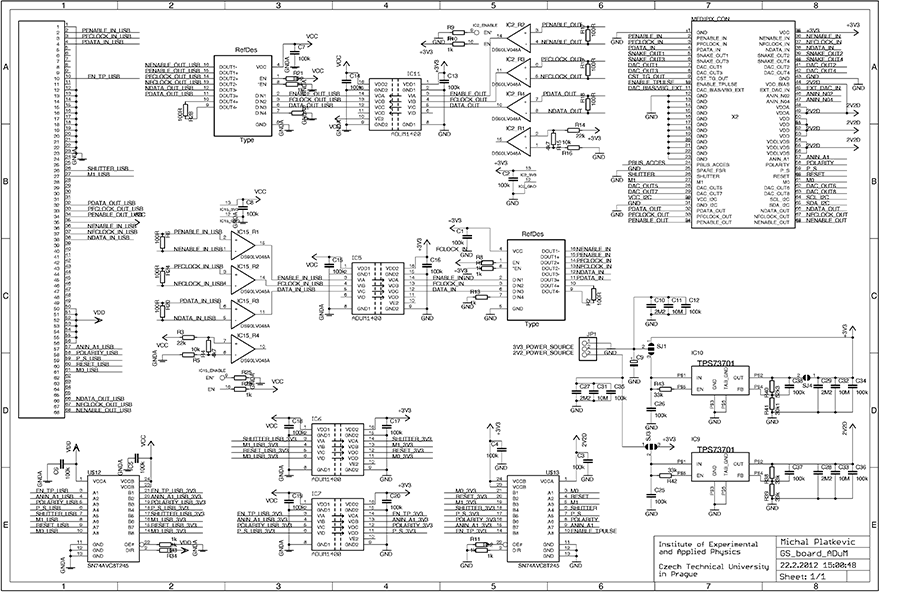

PCB schematic / PCB layout design / hand soldering
PCB design: Eagle
Digital Isolator: Analog Devices ADuM1400
Back side puls
Analogue signal from common electrode of pixelated detector for triggering and spectroscopy.
