hardware design / hand soldering / software

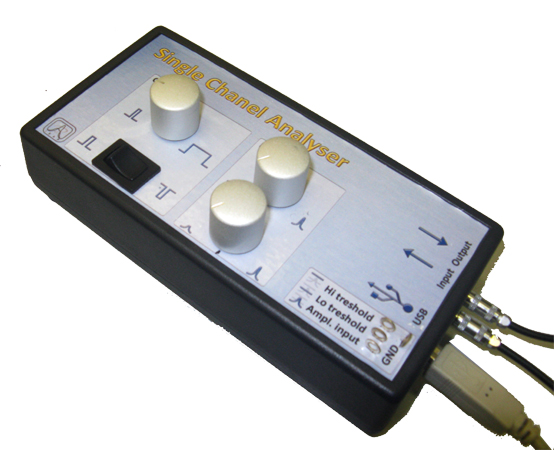

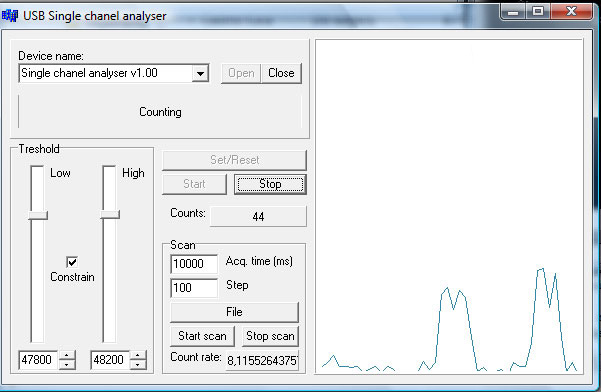

Single channel analyzer for position sensitive activation analysis makes possible coincidence measuring with high sensitive germanium detector and position sensitive Timepix detector. Analyzer allows automatic scan of the element energy spectrum and settings of the low and high threshold for variable Timepix triggering. The device is connected to computer through USB which provides power supply too. Software running under MS Windows allows control the analyzer and process data.

Vývoj

Schematic design: Target3001
Software: Borland C++ Builder

Prezentace

IWORID 2009 - 11th International Workshop on Radiation Imaging Detectors, Prague
28. 6. 2009 - 2. 7. 2009
Spatial and Time Coincidence Detection and Spectroscopy of Decay of Radioactive Ions with Timepix Detector
